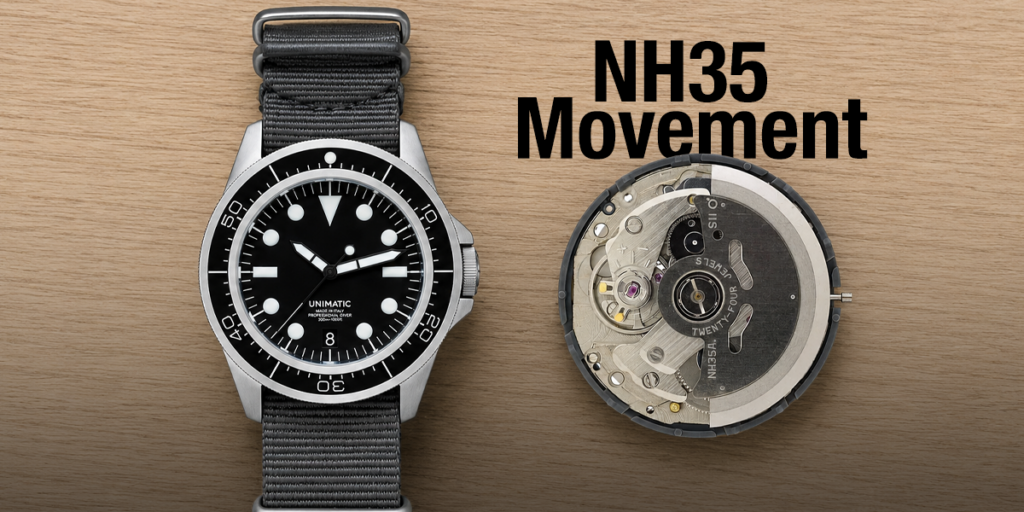

NH35 Movement: What Makes This Seiko Workhorse So Popular?

The NH35 movement is one of the world’s most popular automatic movements currently. You’ll find it in countless affordable and microbrand watches. The Seiko NH35 automatic movement has earned this reputation through reliable performance. It features a 41-hour power reserve, 21,600 vibrations per hour, and 24 jewels for improved durability. The Seiko NH35A movement offers both hand-winding and hacking seconds, making it especially appealing to watch modders and enthusiasts. The NH35A movement accuracy ranges from -20 to +40 seconds per day under normal conditions. This piece explores what makes the Seiko NH35 movement such a workhorse and its key features. We’ll also cover real-life performance and why it remains the go-to choice for microbrands worldwide.

What is the Seiko NH35 Movement

Origins and Development

Seiko Instruments Inc. introduced the Seiko NH35 movement to the market in 2011. The NH series was developed from the 4R3x movement family with reliability and accessibility as core priorities. Seiko wanted to create a mechanical movement that would be accessible to more watch manufacturers beyond its own brand.

This strategy proved successful. Time Module Inc. (TMI), Seiko’s industrial movement division, produces the NH35 and supplies third-party watch brands. The earliest documentation for the NH35A surfaced on February 14, 2011. The first NH35A-powered watches began hitting the market at the time.

Technical Specifications at a Glance

The NH35 automatic movement operates at a frequency of 21,600 vibrations per hour and creates a six-tick-per-second sweep. The movement measures 27.4mm in diameter and 5.32mm in thickness. This makes it suitable for various watch designs without dominating the case structure.

Here’s what powers this workhorse:

Specification	Detail
Type	Automatic with manual-wind override
Beat Rate	21,600 vph (3 Hz)
Jewels	24
Power Reserve	41 hours
Diameter	27.4mm
Thickness	5.32mm
Components	Approximately 169
Shock Protection	Seiko Diashock

The movement uses Seiko’s “magic lever” winding system, a bidirectional automatic winding mechanism. It winds the mainspring in both directions with great efficiency. Moderate wrist activity keeps the watch wound without manual intervention.

NH35A vs 4R35: Understanding the Connection

The NH35 is an unbranded version of the Seiko caliber 4R35. Both movements share the same architecture and specifications. Seiko uses the 4R35 in its own watches, including mid-range models like the Cocktail Time.

One difference exists between versions. The NH35 contains 23 jewels when sold to third parties. The 4R35 used in Seiko’s own watches features 24 jewels. This minor difference doesn’t affect performance but reflects different manufacturing specifications for in-house versus third-party applications.

Both movements offer manual winding and hacking seconds with the same power reserve. The NH35 designation indicates it’s manufactured for external brands rather than Seiko’s own product lines.

Key Features That Made the NH35 Popular

Hand-Winding and Hacking Seconds

Pull the crown to position 1 and turn clockwise. About 25-30 turns will wind the mainspring from a stopped state. This manual winding capability separates the NH35 from older Seiko movements like the 7S26, which lacked this feature.

Hacking seconds lets you stop the seconds hand by pulling the crown out. This feature makes precise time-setting to the exact second possible. Better automatic movements have hacking as standard, but cheaper ones don’t always.

41-Hour Power Reserve

The power reserve carries the watch overnight off your wrist on weekdays. You’ll need to wind it on Monday mornings if you don’t wear it on weekends. The movement runs for about 41 hours once wound.

24-Jewel Construction

The NH35 has 24 jewels at pivot points throughout the movement. These jewels reduce friction and wear in the gear train. The movement’s longevity improves and timekeeping stays consistent over its lifespan.

Bi-Directional Winding System

Seiko’s “magic lever” winding system powers the NH35. The rotor winds the mainspring in both directions of motion. Moderate wrist activity keeps the watch wound. Most owners can wear it daily and never need to wind it manually.

Date Complication Flexibility

The NH35 has quickset date functionality. You can adjust the date without cycling through 24-hour time. Microbrands often use the NH35 with no-date dials despite the date complication. This creates a “ghost” position when pulling the crown, but many manufacturers prefer sourcing one single type of movement for cost savings.

NH35 Movement Accuracy and Real-World Performance

Factory Accuracy Ratings

Time Module claims the NH35A accuracy range falls within -20 to +40 seconds per day under normal conditions. This spec represents a manufacturer’s stated tolerance, the worst-case range a movement is allowed to run within and still pass quality control.

Most individual NH35 movements run better than factory specs in practice. We routinely see NH35 calibers settle into a range of approximately -10 to +20 seconds per day after a brief break-in period. One user reported their watch losing just barely 1 second per day when tested dial-up for 24 hours. Another found their NH35 keeping +5 to +10 seconds on the wrist.

A regulated NH35 adjusted on a timegrapher by a competent watchmaker can comfortably hit ±10 seconds per day or better. One professionally regulated unit ran at +/-0 seconds for 48 hours straight.

How to Improve Timekeeping

Regulation adjusts the rate by moving a lever near the balance wheel hairspring. The NH35 regulator is very sensitive. Small movements cause major rate changes. A distance that might produce 4-5 seconds per day change on other movements can create 20+ seconds per day shifts on the NH35A.

A practical on-wrist average around 0 to +10 seconds per day with sensible positional spread represents achievable performance. Healthy amplitude in the range of 280-320 degrees and beat error lower than 0.6ms set the stage for successful regulation.

Power Reserve Effect on Accuracy

Note that measurements should be done within 10-60 minutes after the movement is wound completely. The NH35A should be wound completely after about 55 manual turns of the crown. Lack of adequate power reserve may skew test results, so this affects your knowing how to diagnose actual accuracy issues.

Why Microbrands and Modders Love the NH35

Economical Pricing

Microbrands gravitate toward the NH35 due to its affordable wholesale pricing. Various suppliers offer replacement movements between $37-$59, with some sources providing complete units as low as $40. This pricing enables microbrand startups to build reliable automatic watches without massive capital investment.

Widespread Parts Availability

Multiple suppliers keep over 3,000 watch parts compatible with the NH35 ready to ship. Hundreds of new small watch brands rely on the NH35 series because parts remain available around the world. Modders can source components without lengthy delays.

Easy Serviceability

The NH35 costs less to replace than service. Simple servicing runs around $150, while a brand new movement sells for $40-$50. So owners can swap in fresh movements for roughly half the service cost and make long-term ownership more economical.

Versatile Design Applications

The NH35 appears in a variety of watch styles from vintage-inspired pilots to whitewashed minimalist designs. Its universal compatibility allows microbrands to create everything from indestructible 300m divers to dressy 40mm compressor-style cases without redesigning case architecture.

Common Watches Using the NH35

Dan Henry 1970 dive watches feature the NH35A movement. Zelos builds multiple drops around this caliber each year and has developed a strong following. Microbrands like Tandorio, Corgeut and Cadisen use the NH35 as their standard automatic option.

Conclusion

The NH35 movement has earned its reputation as a workhorse through economics and practical performance. Pricing sits around $40-$60, and the movement offers decent accuracy after regulation. Thousands of compatible parts are available worldwide, which explains why microbrands continue choosing this caliber. Understanding the NH35 helps you make informed decisions whether you’re building your first watch mod or comparing microbrand offerings. This movement delivers reliable daily performance without breaking the bank.
